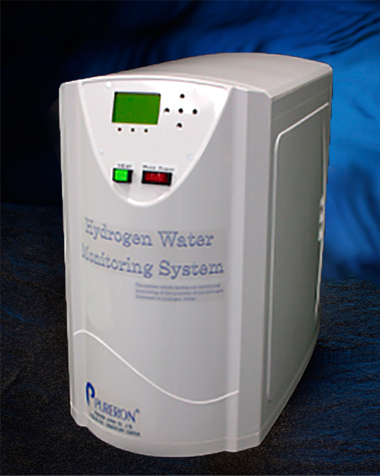

Hydrogen concentration monitor HWMS-PSW series
A hydrogen concentration monitor is used to monitor dissolved hydrogen concentration in a hemodialysis system using dialysate containing hydrogen (H2) (developed product).
This device (hydrogen concentration monitor) is used to monitor the dissolved hydrogen concentration in a hemodialysis system that uses dialysate containing hydrogen (H2).
This hemodialysis system differs from conventional dialysis systems in that it uses electrolyzed dialysis water that contains a large amount of dissolved hydrogen in the dialysate. As a result, the dialysate produced by this system has a characteristic that a certain amount of hydrogen gas is dissolved. Pureron Japan is developing a monitor to measure the hydrogen concentration of this system.
*The development of this device (hydrogen concentration monitor) was supported by the Fukushima Medical and Welfare Equipment Development Project Subsidy.
The hydrogen sensor used in this monitor is a sensor manufactured by NAST Co., Ltd.

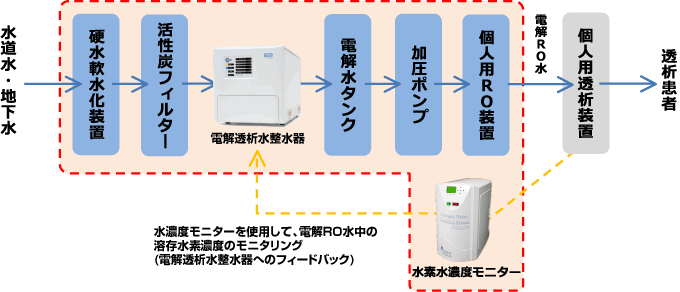

hemodialysis system
The red frame is the hemodialysis system.
Features
Dissolved hydrogen concentration can be measured continuously by supplying hydrogen water at low pressure (with a built-in pump, measurement is possible even with no-pressure water supply). After measurement, the wastewater is discharged without pressure.
- Measurement target: Hydrogen water
- Display: ppb LCD display
- Output: 4-20mA current output (optional)
specification
-
Measurement method: Gaseous hydrogen separation, micro thermocouple gas sensor
(Please refer to NAST Co., Ltd.'s website for the sensor element.)
- Measurement range: Hydrogen water concentration 0～1,000 ppb
- Supply water pressure: 0～0.2MPa
- Measured water amount:20～40ml/min
- power supply : AC100V50/60Hz

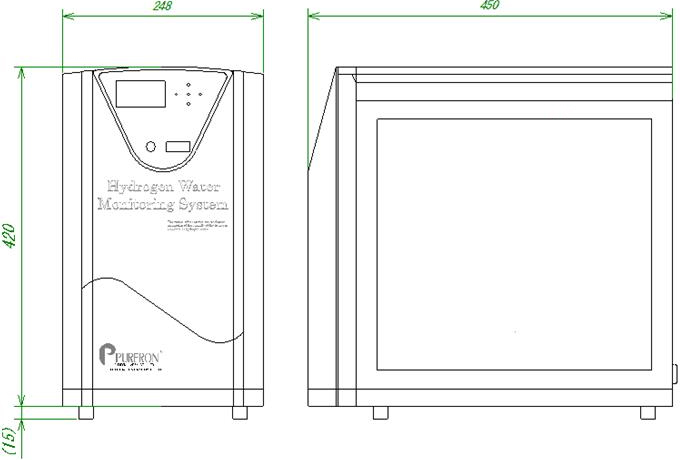

- External dimensions/weight: Approximately 250（W）×435（H）×450（D）mm・Approximately 5Kg
