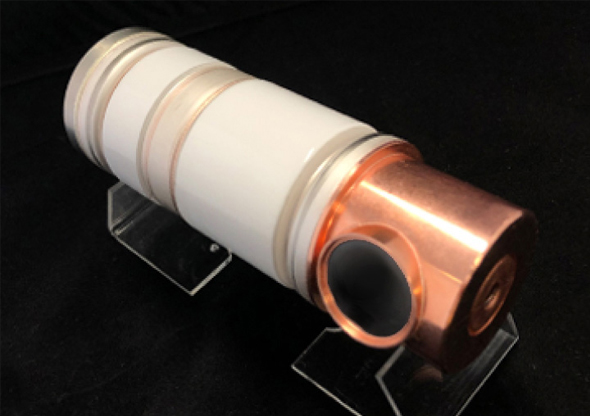

Cold cathode X-ray carbon nano X-ray tube
Pureron's cold cathode X-ray tube uses an electron source made of carbon nano, manufactured using Pureron's unique CVD film deposition method (patented). This X-ray tube does not require heating of the electron source. This makes it possible to keep power consumption low (it is easy to manage because no X-rays are emitted when the power is turned off).
It can also take pictures instantly and can be used with a power source comparable to that of a dry cell battery.
Due to the advantages of miniaturization and weight reduction, various applications can be considered, such as non-destructive inspection, which requires portability, and baggage inspection at Shinkansen and airports.
Cold cathode X-ray carbon nano X-ray tube
-
- No filament power required
-
Since heating of the electron source is not required during use, power consumption is low.
-
- No waiting time
-
Irradiation is possible immediately by applying anode to the cold cathode.
-
- Continuous irradiation possible
-

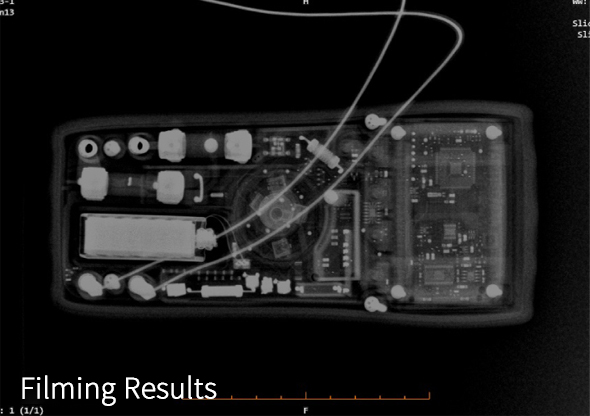

Continuous irradiation with pulsed X-rays is easily possible, making it suitable for video shooting. *Limited to compatible detectors.
-
- No subfocus occurs
-
Images are clearer because there are no secondary focal points.
-
- high output
-

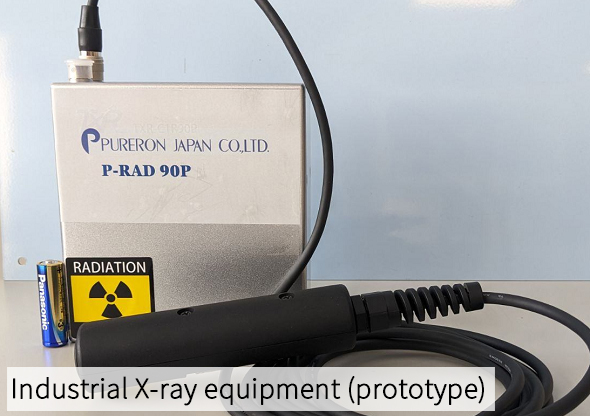

Due to its small size and high output, the device itself can be made smaller and lighter.
-
- power saving
-
It can be used with a power source comparable to a dry cell battery.
-

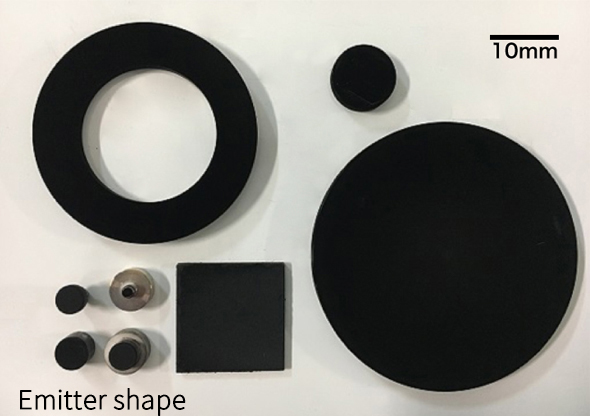

- Carbon nanostructure cold cathode electron source
-

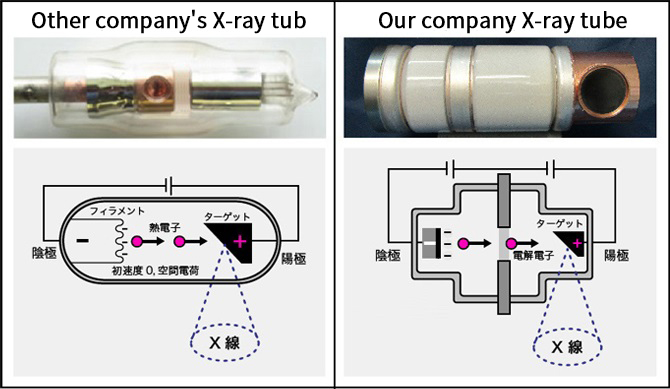

- Comparison of appearance and diagram of hot cathode method and cold cathode method
Application examples of cold cathode X-ray tubes
It has become possible to achieve miniaturization and is used as non-destructive testing equipment for industrial and security purposes.
- industry
-

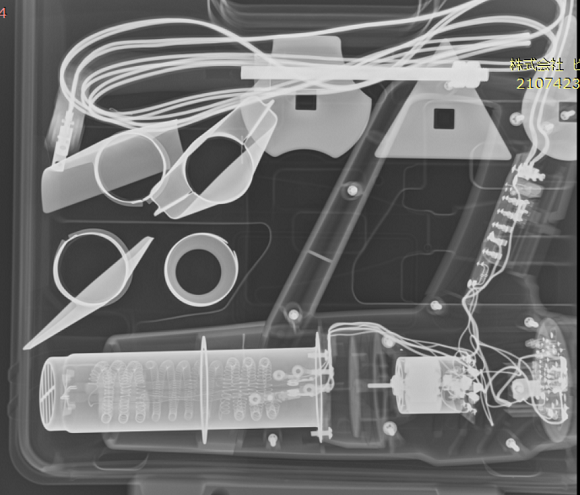

- Inspection of infrastructure such as electric wires

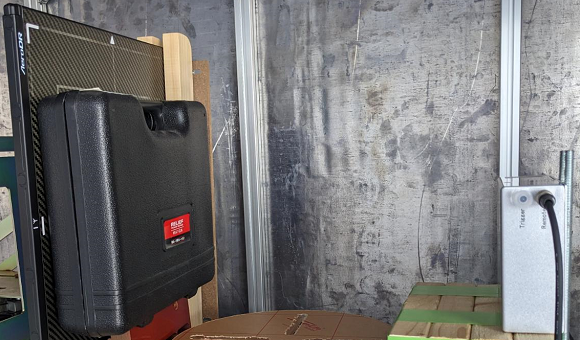

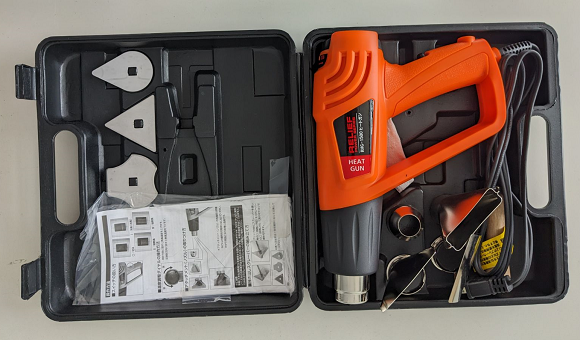

- Inspection of foreign objects such as products and packaging
-

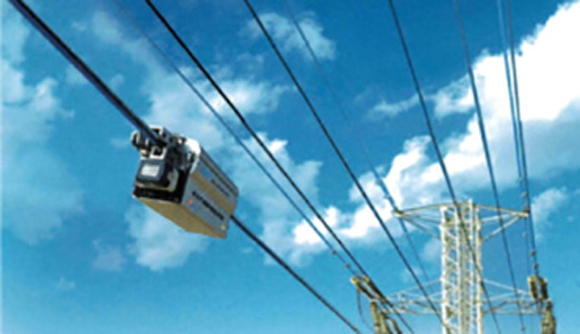

- Unmanned high voltage wire inspection equipment
-

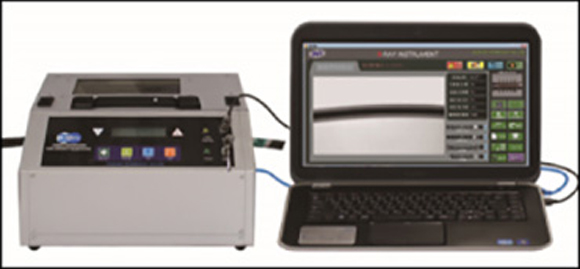

- 120kV small X-ray inspection device for electric wires
(※)Usage example by Tsukuba Technology Co., Ltd.
- Security
-
- Baggage inspection on flights, Shinkansen, etc.
-

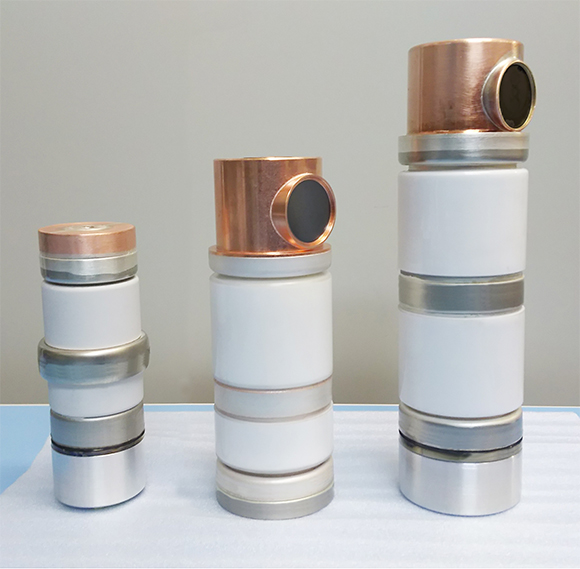

Cold cathode X-ray tube specifications
tube voltage |
80〜200kV |
tube current |
〜20mA |
full length |
100〜167mm |
Maximum diameter |
Φ27〜46mm |
weight |
270〜830g |
*The above specifications are under development (as of July 2019). We will consider your specifications, so please contact us.
*The contents may be changed without notice due to product improvement.
